KZ EDX Pro vs KZ EDX Pro X: Tested for Gaming & Music

If you are trying to figure out whether the newer KZ EDX Pro X is a massive leap over the classic KZ EDX Pro, here is the blunt truth: it is not a revolutionary redesign. It is a subtle refinement.

After running them back-to-back through competitive gaming lobbies, hours of music playlists, and side-by-side mic checks, the actual acoustic gap is roughly 10% to 15%.

The older EDX Pro hits with a heavier, rawer bass slam. The newer EDX Pro X reins in that harsh, piercing treble KZ is infamous for, giving you a slightly smoother sound signature that is easier on your ears during long sessions.

How I Tested Both IEMs

To give you an honest appraisal rather than repeating manufacturer marketing specs, I ran both sets through an identical testing routine:

• Hardware Sources: Directly into my PC’s onboard 3.5mm jack, through a basic Type-C DAC dongle on my phone, and unamplified straight out of a handheld console.
• Music Playlists:
  • Sub-bass & Kick drum punch: Track-heavy hip-hop and electronic music to check driver distortion and low-end rumble.
  • Treble & Sibilance test: High-energy rock and fast metal tracks to expose sharp “S”, “T”, and hi-hat piercing sounds between 2,000 Hz and 8,000 Hz.
  • Acoustic & Vocals: Stripped-down acoustic tracks to judge if midrange vocals get drowned out by bass.
• Gaming Suite: Competitive shooters (Valorant, CS2, and Apex Legends) to evaluate spatial awareness, footstep audio cues, and ear fatigue when gunfights get chaotic.
• Microphone Rig: Discord calls and direct voice recordings using the stock inline mic, sitting roughly two feet from a running room ceiling fan without holding the cable up to my mouth.

Build Quality

Put these on a table, take a step back, and you will struggle to tell them apart. KZ reused almost the entire physical housing, but a few telltale details stand out on close inspection.

The Faceplates & Shells

Both feature the familiar transparent resin shell with a zinc alloy accent. The regular EDX Pro has a clean, circular faceplate displaying the classic KZ shield logo. The EDX Pro X changes this up with a printed border reading “Dynamic Innovation EDX Pro X”. Beyond that subtle print change, the external shape, nozzle angle, and ear canal depth are identical.

The Drivers Inside the Resin

Look through the clear resin, and you will spot where the actual engineering differs:

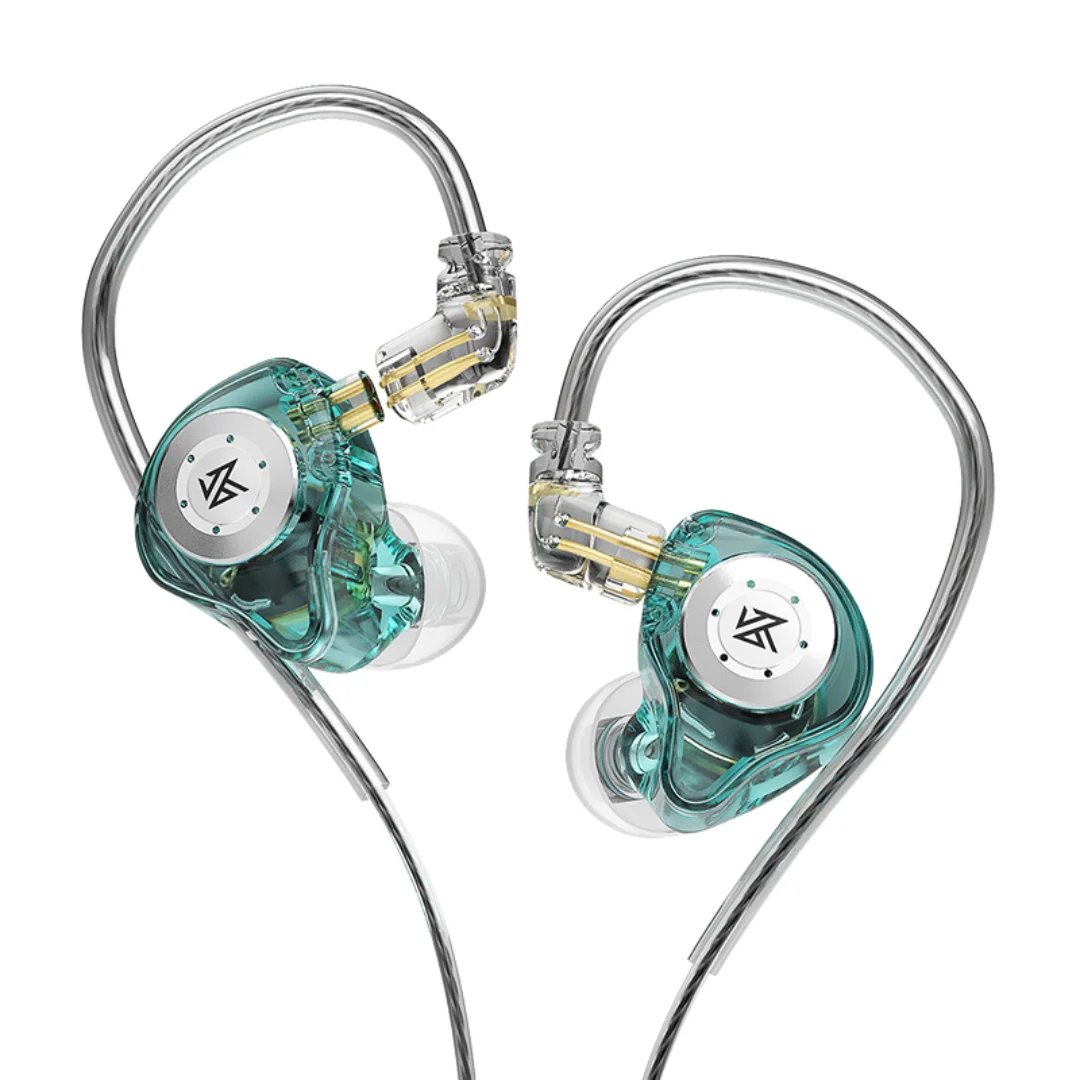

• EDX Pro: Uses a dual-magnetic circuit dynamic driver (10mm). Visually, the driver unit looks slightly chunkier and physically fills more of the inner chamber.

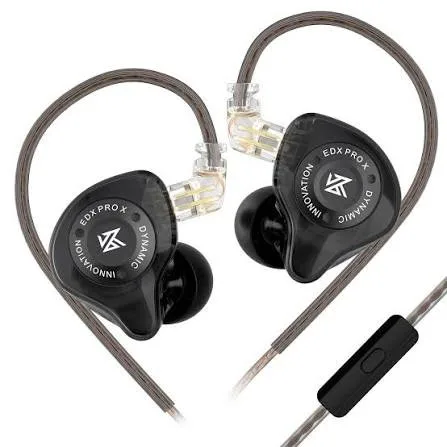

• EDX Pro X: Houses an updated linear dynamic driver. The unit looks marginally more compact, which alters how air moves through the internal cavity.

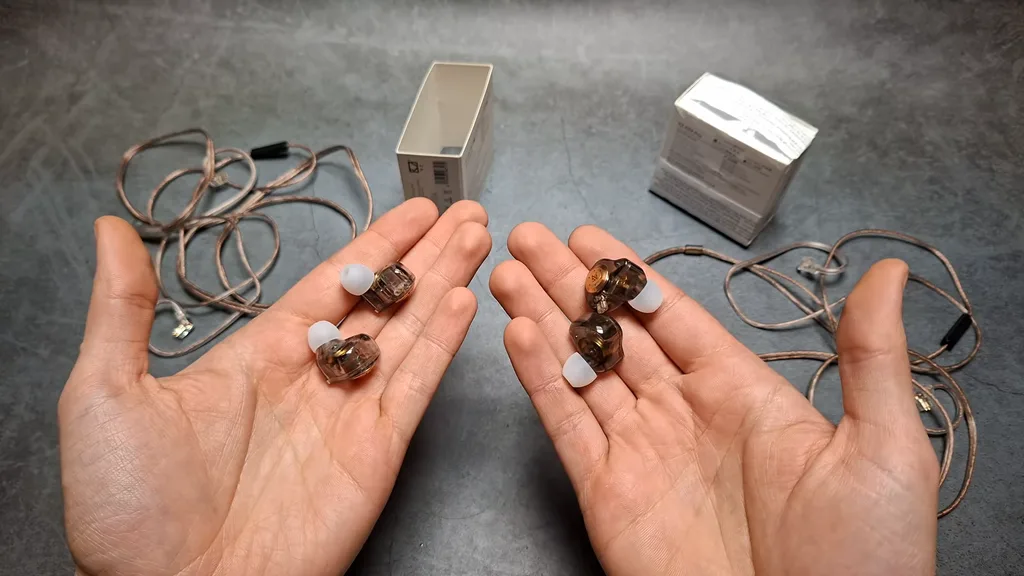

Cable & Accessories

Do not expect any upgrades in the box. Both ship with the identical KZ flat, clear-copper cable terminated in a 0.75mm 2-pin QDC-style connector and a right-angled 3.5mm jack. The included ear tips are the same ribbed “stargirl” silicone tips KZ has packed for years.

Fit & Comfort

Because the shells are physically identical, the ergonomic experience doesn’t change. Both sit light and snug in medium-sized ears. With a proper seal and the default medium tips, passive noise isolation cleanly blocks ambient keyboard clatter and mild room noise.

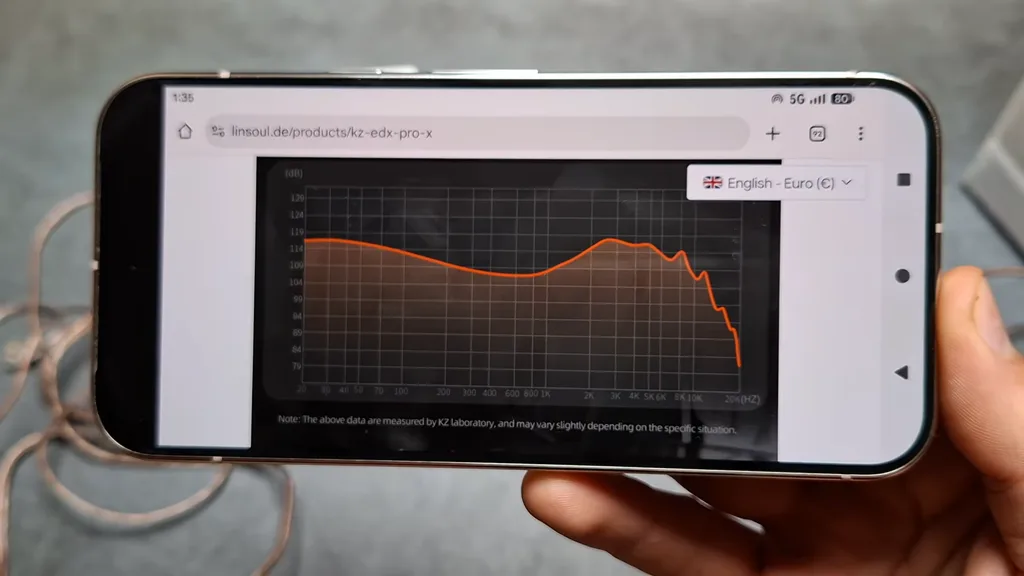

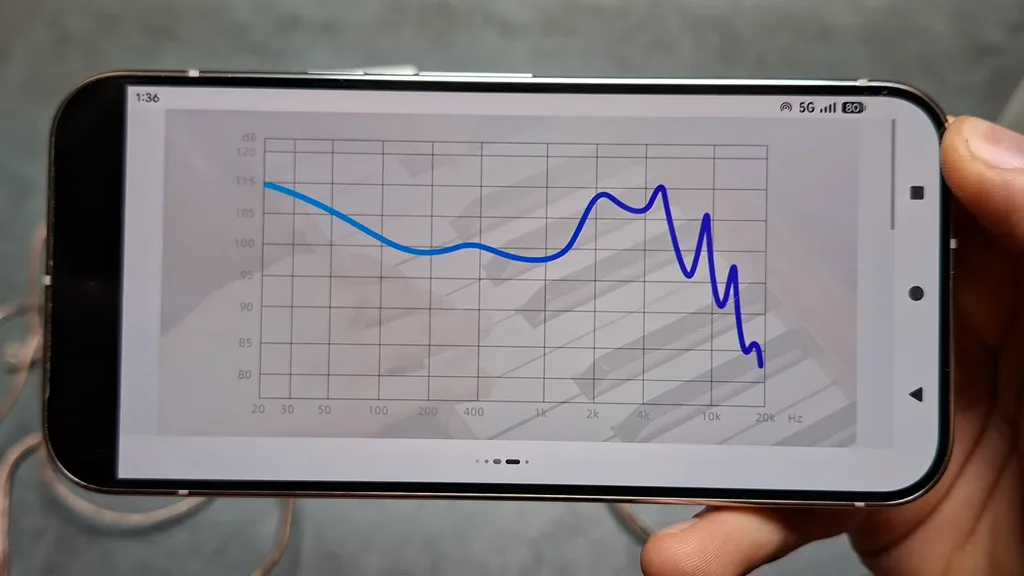

Sound Quality

Feature	KZ EDX Pro	KZ EDX Pro X	Real-World Takeaway
Driver Type	10mm Dual-Magnetic Dynamic	10mm Linear Dynamic	Pro has more physical magnet mass; Pro X has tighter control.
Frequency Range (Claimed)	10 Hz – 20,000 Hz	20 Hz – 40,000 Hz	Paper specs. Human hearing stops at 20 kHz anyway.
Bass Response	Big, punchy, slightly boomy	Tighter, controlled punch	Pro slams harder; Pro X bleeds less into the mids.
Mids / Vocals	Deep V-shape, slightly recessed	Cleaner, slightly clearer	Pro X handles female vocals and acoustic tracks better.
Treble Smoothness	Sharp spikes, prone to sibilance	Smoother rolloff, tame peaks	Pro X fixes the fatiguing “hiss” on sharp S sounds.
Volume Sensitivity	Marginally easier to drive loud	Needs 1–2 clicks more volume	Both run easily off any basic phone or controller.

Bass (Sub-Bass & Mid-Bass)

The EDX Pro remains the basshead favorite. The dual-magnetic driver moves more air, delivering a noticeable thud in the lower register. If you want chest-rattling kick drums and heavy electronic drops, the older Pro delivers with a bit more raw energy.

The EDX Pro X pulls back on that low-end dominance just enough to clean things up. The sub-bass extension remains, but the mid-bass doesn’t spill into the lower instruments as much. The bass notes decay faster, making basslines sound distinct rather than warm and mushy.

Midrange & Vocals

On the original EDX Pro, vocals take a noticeable back seat due to its aggressive V-shaped tuning. Male vocals, in particular, can sound a bit thick and recessed behind heavy guitars or synthesizers. If your main priority is forward, intimate vocals, an alternative like the Tangzu Wan’er still holds an edge in this price range.

The EDX Pro X steps in with better midrange tuning. Singers feel closer to your ears, and acoustic guitar plucks are more clearly separated. It won’t compete with a dedicated $50 vocal IEM, but in the sub-$15 bracket, the Pro X delivers far better intelligibility for dialogue and singing.

Treble & That Infamous KZ Harshness

This is where the real practical difference shows up.

The EDX Pro suffers from sharp frequency peaks between 2 kHz and 8 kHz. When cymbals crash, or a vocalist hits hard “S”, “C”, or “T” syllables, it can border on painful at medium-to-high volumes. If you are sensitive to bright treble, you will feel ear fatigue set in after 45 minutes of aggressive music.

The EDX Pro X smooths out that peak. The response curve through the lower and mid treble is much more linear. You still get crisp detail and perceived air, but the sharp spikes are rounded off. I listened to the Pro X for three hours straight without that nagging urge to drop the volume slider.

Microphone & Comm Test

Both models offer an optional inline microphone built into the cable, featuring a single play/pause button.

Testing them through Discord and basic recording software yielded virtually identical results:

• Voice Clarity: Clean enough for everyday gaming comms, Zoom calls, or voice notes.
• Background Rejection: Average. Because the mic sits loose along your collarbone, it easily picks up loud mechanical key switches or direct airflow from an oscillating fan.
• Handling: If the wire rubs against a rough zipper or shirt collar, your teammates will hear that scratching noise.

Neither microphone has an advantage over the other; they are the same component.

Gaming Performance

If you are buying one of these primarily for competitive shooters like Valorant, CS2, or Call of Duty, the sound signature directly dictates your in-game performance:

• Footstep Audio & Directional Tracking: The EDX Pro X takes the win here. In competitive FPS, high mid-bass can drown out subtle environmental cues. By dialing back the boominess and cleaning up the upper-mid frequencies, the Pro X lets footstep audio cut through the soundscape with better directional clarity. If you are browsing the best budget IEMs for gaming, the Pro X takes the win here because it dials back the boominess.
• Explosion Fatigue: On the older EDX Pro, firing an unsuppressed weapon or having a frag grenade land near you results in a sharp, jarring crack followed by a lingering bass rumble. In intense firefights, this gets exhausting fast.
• Spatial Staging: Both IEMs have an intimate, in-your-head soundstage typical of budget dynamic drivers. You will not get massive open-back headphone width, but left-to-right positional panning is accurate on both.

For gaming, the EDX Pro X is objectively the better pick simply because it spares your eardrums from sharp treble fatigue while delivering clearer positional cues.

Should You Upgrade or Buy?

If You Already Own the KZ EDX Pro:

Do not upgrade. The difference is roughly 10% to 15% in sound refinement. Unless your current pair has a broken connector or the treble genuinely gives you a headache, the Pro X isn’t distinct enough to justify replacing it.

If You Are Buying Fresh:

• Pick the KZ EDX Pro X if: You play competitive FPS games, listen to vocal-heavy tracks, or get fatigued quickly by sharp, piercing treble. At comparable prices, the Pro X is the more mature, well-rounded set.
• Pick the KZ EDX Pro if: You are on a razor-thin budget and find the older Pro on clearance for a few dollars less, or if you want maximum bass slam for hip-hop and EDM and don’t mind dialing the volume back to avoid treble spikes.

If you are buying fresh and shopping among the best budget IEMs under $50, pick the KZ EDX Pro X—it is the more mature, well-rounded set.
